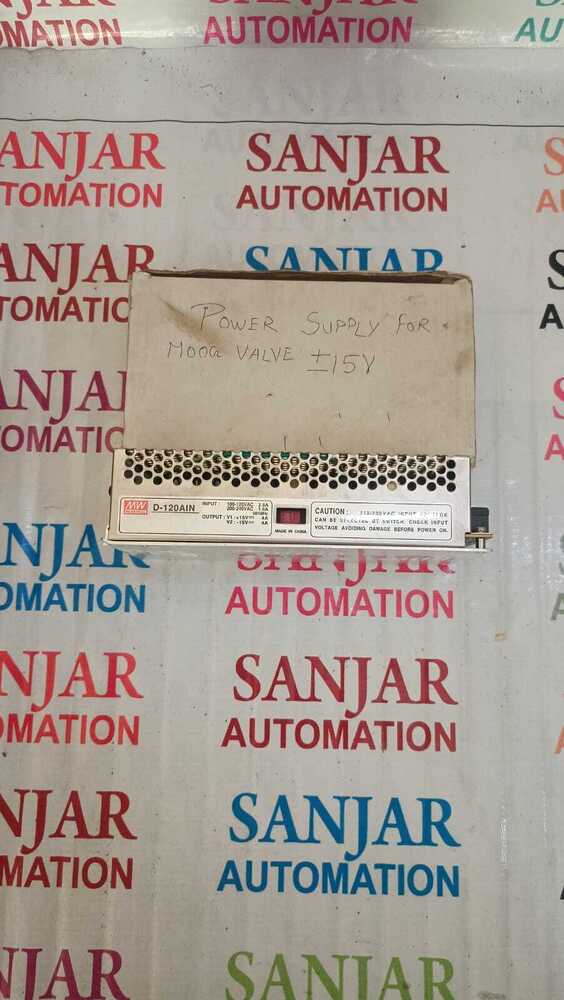

MEAN WELL D-120AIN

Name: MEAN WELL D-120AIN
Brand: SANJAR AUTOMATION
Price: 1350.0 INR
Availability: InStock

Price 1350.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MEAN WELL D-120AIN Specification

Feature
Built-in cooling fan, High reliability, LED indicator for power on

Shape
Rectangular

Power Factor
0.95

Connector Type
Screw Type Terminal Block

Efficiency
82%

Surface Finish
Galvanized / Painted

Insulation Material
Glass Fiber Reinforced

IP Rating
IP20

Humidity %
20 ~ 90% RH non-condensing

Operating Temperature
-20C ~ +60C Celsius (oC)

Mounting Type
Panel Mount

Product Type
Switching Power Supply

Application
Industrial Automation, LED Lighting, Control Panels

Protection Level
Overload / Over voltage / Short circuit

Frequency (MHz)
47 - 63 Hz Hertz (HZ)

Rated Voltage
115/230 VAC (Selectable) Volt (V)

Output Type
Dual Output (5V/12V/24V/15V depending on model)

Color
Silver

Dimension (L*W*H)
160 x 97 x 38 mm Millimeter (mm)

Weight
0.82 kg Kilograms (kg)

Input Voltage
88~132VAC/176~264VAC by switch, 248~370VDC Volt (V)

Size
160 mm x 97 mm x 38 mm

Phase
Single Phase

Material
Metal

No Of Poles
Single

Connection Type
Screw Terminal

Leakage Current
<1.0mA @ 240VAC

LED Indicator
Yes, for power on

Cooling Method
Free air convection

Output Voltage Range
10% adjustable

Safety Standards
EN60950-1, EN55022(CISPR22) Class B

Vibration Resistance
10~500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

Hold-up Time
>16ms at full load

MTBF
>200,000 hrs MIL-HDBK-217F (25C)

Ripple & Noise
<100mVp-p

MEAN WELL D-120AIN Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
AS PER CAUSTOMER

Main Domestic Market
All India

Certifications
BOX PACK MEAN WELL D-120AIN

About MEAN WELL D-120AIN

Select the MEAN WELL D-120AIN for your industrial automation or LED lighting needsa preeminent choice for those who value both quality and safety. This limited-time offer encompasses a 120W dual output power supply, boasting a selectable rated voltage with high efficiency (82%), and stringent protection mechanisms. Its incomparable reliability shines with an MTBF beyond 200,000 hours and a triumphant IP20 rating. Experience incomparable value with features like a built-in cooling fan, LED power indicator, and robust adherence to international safety standards. Dont miss exceptional performance for a select period!

Application Method & Features

The MEAN WELL D-120AIN is engineered for straightforward panel mounting, making installation seamless in industrial automation, control panels, and LED lighting systems. Simply connect via the screw terminal block and adjust output voltage as needed. Its robust protection features cover overload, overvoltage, and overheating, ensuring safe, steady operation. The galvanised metal body, LED status indicator, and automatic recovery enhance its preeminent reliability and user-friendly design. Benefit from incomparable performance, energy efficiency, and versatile mounting options for demanding environments.

Export Markets, Payment, and Sample Policy

MEAN WELL D-120AIN shipped goods reach diverse main export markets across Asia, Europe, and the Middle East. Order processing is efficient, accommodating various payment terms such as T/T, L/C, and PayPal for flexible trading. For prospective buyers, sample policy typically allows for a nominal outlay, fostering trial before larger commitments. This seamless transaction pathway establishes confidence and ensures clients receive prompt, high-quality support when sourcing this triumphant power solution.

FAQs of MEAN WELL D-120AIN:

Q: How do you install the MEAN WELL D-120AIN in a control panel?

A: Installation is straightforwardmount the rectangular unit on the panel using the provided slots, connect input and output wires to the screw terminal blocks, and adjust the output voltage within its 10% range as necessary.

Q: What are the primary features that set the MEAN WELL D-120AIN apart?

A: This power supply stands out with its exceptional reliability (over 200,000hrs MTBF), free air convection cooling, LED status indicator, and comprehensive overload, overvoltage, and short circuit protection, all enclosed in a durable, galvanized housing.

Q: When should I use the D-120AIN in my application?

A: The D-120AIN is ideal for use in industrial automation systems, control panels, and LED lighting projects where high reliability, stable output, and robust protection mechanisms are required.

Q: Where is the MEAN WELL D-120AIN commonly shipped?

A: This product is shipped to key export markets throughout Asia, Europe, and the Middle East, catering to a wide range of industrial and lighting applications.

Q: What is the process for ordering and receiving the D-120AIN?

A: Order processing is swift: place your order with preferred payment terms (T/T, L/C, PayPal), and the goods are shipped efficiently. Samples can be requested for a modest outlay prior to larger orders.

Q: What are the main benefits of using this power supply in demanding environments?

A: Users benefit from the D-120AINs high efficiency, adjustable output, advanced protection circuits, long service life, and ease of integration, making it a preeminent solution for mission-critical operations.
