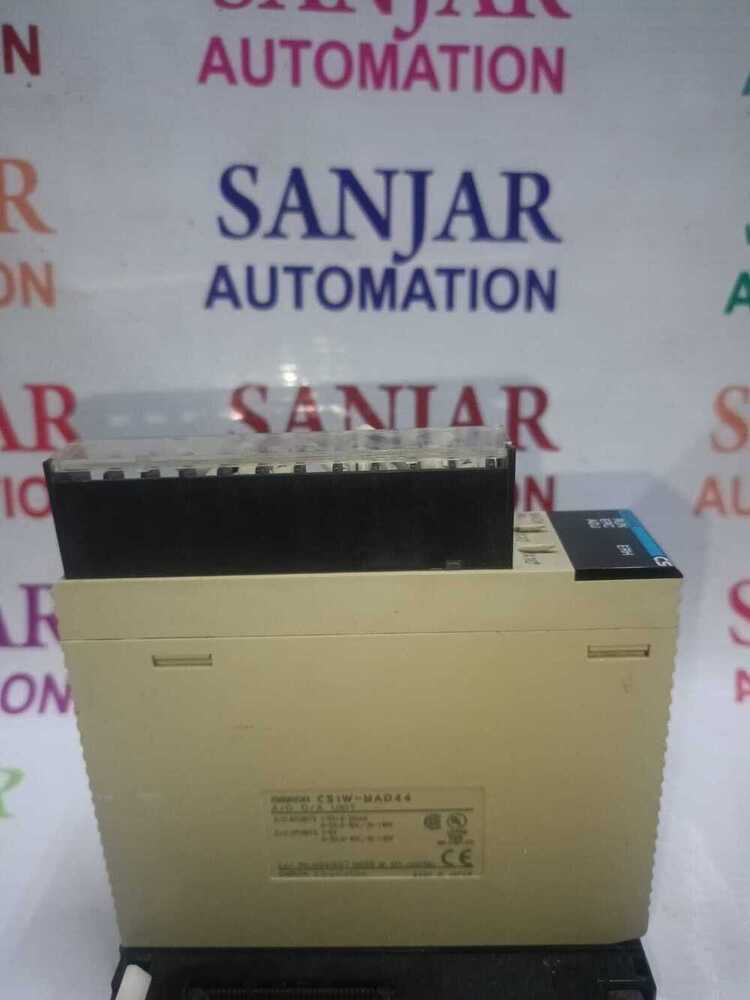

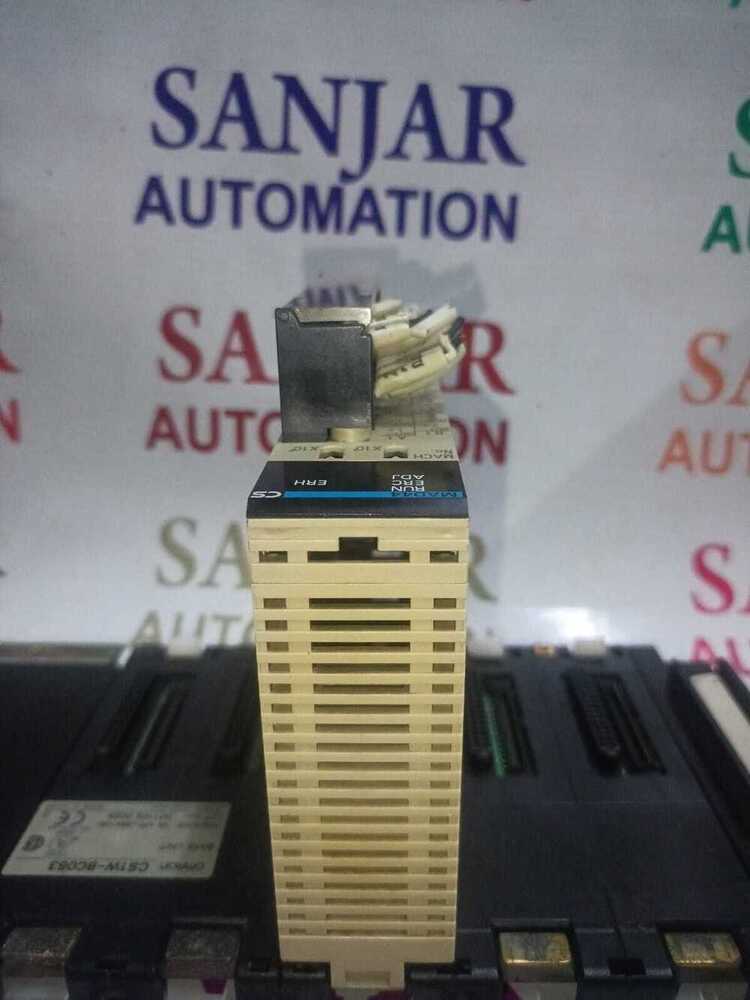

OMRON CS1W-MAD44

Price 1300 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

OMRON CS1W-MAD44 Specification

IP Rating
IP20

Shape
Rectangular

Connector Type
Screw Terminal Block

Insulation Material
Polycarbonate

Operating Temperature
0 to 55C

Humidity %
10 to 90% RH (non-condensing)

Surface Finish
Matte

Feature
4-Channel Input, 4-Channel Output

Mounting Type
DIN Rail

Product Type
Analog I/O Module

Application
Industrial Automation, PLC Systems

Frequency (MHz)
50/60 Hz

Rated Voltage
24 VDC

Energy Consumption
7.2 W max.

Output Type
Analog

Color
Gray

Dimension (L*W*H)
130 x 35 x 100 mm

Weight
260 g

Input Voltage
24 VDC

Size
Standard Module Size

Connection Type
Screw Terminal

Material
Plastic, Metal

Analog Output Range
-10 to +10V, 0 to 10V, 4 to 20mA, 0 to 20mA

Output Load Resistance
2 k min (Voltage output), 300 max (Current output)

Calibration
Factory Calibrated

Isolation
No isolation between channels

Module Type
Mixed Analog I/O

Compatible Series
OMRON CS1 Series

Response Time
5 ms (typical)

Resolution
12-bit

Current Consumption
170 mA (at 5 VDC)

Storage Temperature
-20 to 75C

Number of Outputs
4 (Analog)

Number of Inputs
4 (Analog)

Analog Input Range
-10 to +10V, 0 to 10V, 4 to 20mA, 0 to 20mA

Input Impedance
1 M (Voltage Input)

OMRON CS1W-MAD44 Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal, Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
AS PER CAUSTOMER

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
USED OMRON CS1W-MAD44

About OMRON CS1W-MAD44

Experience stellar performance with the OMRON CS1W-MAD44 Mixed Analog I/O Module, the illustrious champion in industrial automation. This module is perfectly suited for precision applications, featuring 4 analog inputs and 4 analog outputs within a robust, gray standard-sized module. Boasting a 12-bit resolution and factory calibration, it ensures accurate signal processing. Grab this sophisticated solution at the lowest price from our reputable supplier and enjoy exclusive offers. Enhance your PLC systems with a reliable module that delivers efficient, consistent results. Don't miss this champion for your automation needs!

Diverse Applications & Standout Features

The OMRON CS1W-MAD44 excels in myriad applications, including advanced process control, precise monitoring, and seamless signal conversion for manufacturing PLC systems. Compatible with the CS1 series, this module is essential in high-demand industrial environments. Key features include a swift 5 ms response time, maintenance-free, factory calibration, and secure DIN rail mounting. Its sturdy construction and matte surface finish ensure durability, while the wide operating and storage temperature range guarantee stellar performance in diverse usage scenarios.

Sample Availability, Export Markets & Efficient Delivery

Samples of the OMRON CS1W-MAD44 are available for those evaluating high-quality solutions before committing to a full outlay. This product is expertly packaged for secure international shipping, serving main export markets across Asia, Europe, and beyond. Upon receipt of a purchase order, prompt and reliable delivery is ensured, minimizing downtime and maintaining continuity. Trust our efficient processes to meet your industrial automation needs with swift turnaround and standardized packaging that guarantees product integrity.

FAQ's of OMRON CS1W-MAD44:

Q: How can I benefit from using the OMRON CS1W-MAD44 in industrial automation?

A: Utilizing the OMRON CS1W-MAD44 provides precise analog signal processing, reliable performance with 12-bit resolution, and efficient integration into PLC systems, enhancing monitoring and control processes.

Q: What is the typical response time of the CS1W-MAD44 module?

A: The CS1W-MAD44 offers a rapid response time of 5 milliseconds, ensuring swift signal conversion for time-sensitive industrial operations.

Q: When should I consider using this module for my automation setup?

A: Deploy the CS1W-MAD44 when you require mixed analog I/O capabilities, such as in applications demanding multiple analog input/output channels and high accuracy within PLC-based control systems.

Q: Where is the OMRON CS1W-MAD44 commonly used?

A: This module is predominantly used in industrial automation settings, such as manufacturing plants, process industries, and automation control panels requiring analog signal conversion.

Q: What is the process for purchasing and receiving the OMRON CS1W-MAD44?

A: To purchase, submit a purchase order to our dedicated team. Your order is securely packaged, and we ensure prompt delivery to both local and international markets.

Q: How does the module maintain calibration accuracy?

A: The OMRON CS1W-MAD44 is factory calibrated, eliminating regular manual adjustments and ensuring consistent performance over its operational lifespan.
