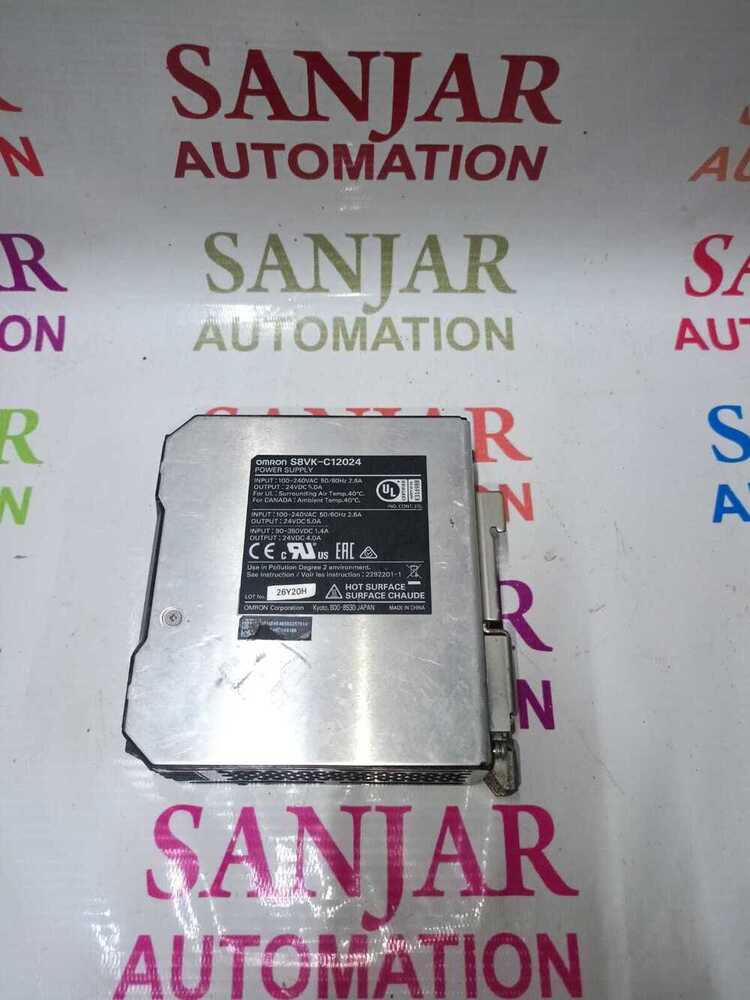

OMRON S8VK-C12024

Name: OMRON S8VK-C12024
Brand: SANJAR AUTOMATION
Price: 1000 INR
Availability: InStock

Price 1000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

OMRON S8VK-C12024 Specification

Humidity %
25% to 85% (No Condensation)

Power Factor
0.95 typ. (230V AC, full load)

Connector Type
Screw Terminals

Feature
Wide Operating Temperature, Easy DIN Rail Mount, High Reliability

Operating Temperature
-25C to +60C

Insulation Material
Polycarbonate

IP Rating
IP20

Efficiency
Over 85%

Surface Finish
Powder Coated

Shape
Rectangular

Mounting Type
DIN Rail Mounting

Product Type
Switch Mode Power Supply

Application
Industrial Automation, Factory Equipment, Control Panels

Protection Level
Short Circuit, Overvoltage, Overload Protection

Frequency (MHz)
47-63 Hz

Rated Voltage
24V DC Output

Energy Consumption
120 W

Output Type
Single Output

Color
Black & Silver

Dimension (L*W*H)
97 38 124 mm

Weight
640 g

Phase
Single Phase

Input Voltage
100-240V AC

Size
Compact

Connection Type
Screw Terminal

No Of Poles
1

Material
Metal (Enclosure), Plastic (Terminals)

Cooling Method
Natural Air Cooling

Isolation Class
Class II (Double Insulation)

Output Indicator
LED (Green)

Ripple and Noise
120 mVp-p

Inrush Current
Less than 18A (at 230V AC)

Model Number
S8VK-C12024

Voltage Adjustment Range
22-28V DC

Maximum Output Current
5A

Hold-up Time
More than 20 ms (at 100V AC input, full load)

OMRON S8VK-C12024 Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
AS PER CAUSTOMER

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
USED OMRON S8VK-C12024

About OMRON S8VK-C12024

Ending Soon! OMRON S8VK-C12024 is a famed paragon in reliable power supply solutions. With a soaring efficiency of over 85% and natural air cooling, this compact device offers a 24V DC output at 5A and a 22-28V DC adjustment range. Grab this IP20-rated, factory-tough componentideal for industrial automation and control panels. The powder-coated, double-insulated enclosure and sleek black & silver finish ensure durability. Dont miss out on this markdown: the S8VK-C12024 sets the standard for reliability and easy DIN rail mounting!

Versatile, Robust, and Ready for Demanding Applications

OMRON S8VK-C12024 is tailored for industrial uses, as well as commercial environments that demand high performance and reliability. Suitable for control panels and factory automation systems, its compact design, broad operating temperature range, and efficient natural air cooling set it apart. Added features include overload, overvoltage, and short-circuit protection, LED output indicators, and easy screw terminal connectionsmaking it a standout solution for demanding, high-stakes settings.

Export Markets, Samples, and Flexible Payment Solutions

A trusted choice in global markets, OMRON S8VK-C12024 is frequently shipped to regions such as Europe, Asia, and the Middle East. Samples are available on request to facilitate pre-shipment evaluations or product exchange discussions. Payment terms are negotiable, aligned with clients asking prices and preferencesensuring a smooth procuring process. OMRONs streamlined export procedures support traders, suppliers, and service providers, maximizing efficiency from order placement to final shipment.

FAQs of OMRON S8VK-C12024:

Q: How does the OMRON S8VK-C12024 ensure safety in industrial environments?

A: The S8VK-C12024 features advanced safety measures, including short circuit, overvoltage, overload, and overheating protection (with automatic shutdown), housed in a double-insulated, powder-coated enclosure for reliable operation in industrial settings.

Q: What is the process for installing the OMRON S8VK-C12024 power supply?

A: Installation is straightforward with the compact rectangular design and DIN rail mounting. Simply secure it onto the rail, then connect the input and output wiring using the robust screw terminals, ensuring a quick and secure setup.

Q: Where is OMRON S8VK-C12024 commonly used?

A: This model is ideally used in industrial automation systems, factory equipment, and control panels, where dependable 24V DC power is essential for sensitive machine operations.

Q: How can I request a sample or inquire about the asking price?

A: To request a sample or discuss the asking price, reach out to the supplier or trader. Samples are often available for pre-purchase evaluation, and payment terms can be negotiated based on shipment size and customer requirements.

Q: What are the benefits of the wide operating temperature and high reliability?

A: The wide operating temperature range (-25C to +60C) and proven high reliability ensure that the S8VK-C12024 performs dependably in challenging environments and reduces downtime due to temperature extremes.
